Cheese brushing machine semi-automatic, vertical

Semi-automatic, vertical cheese care machine for cheese up to Ø350mm

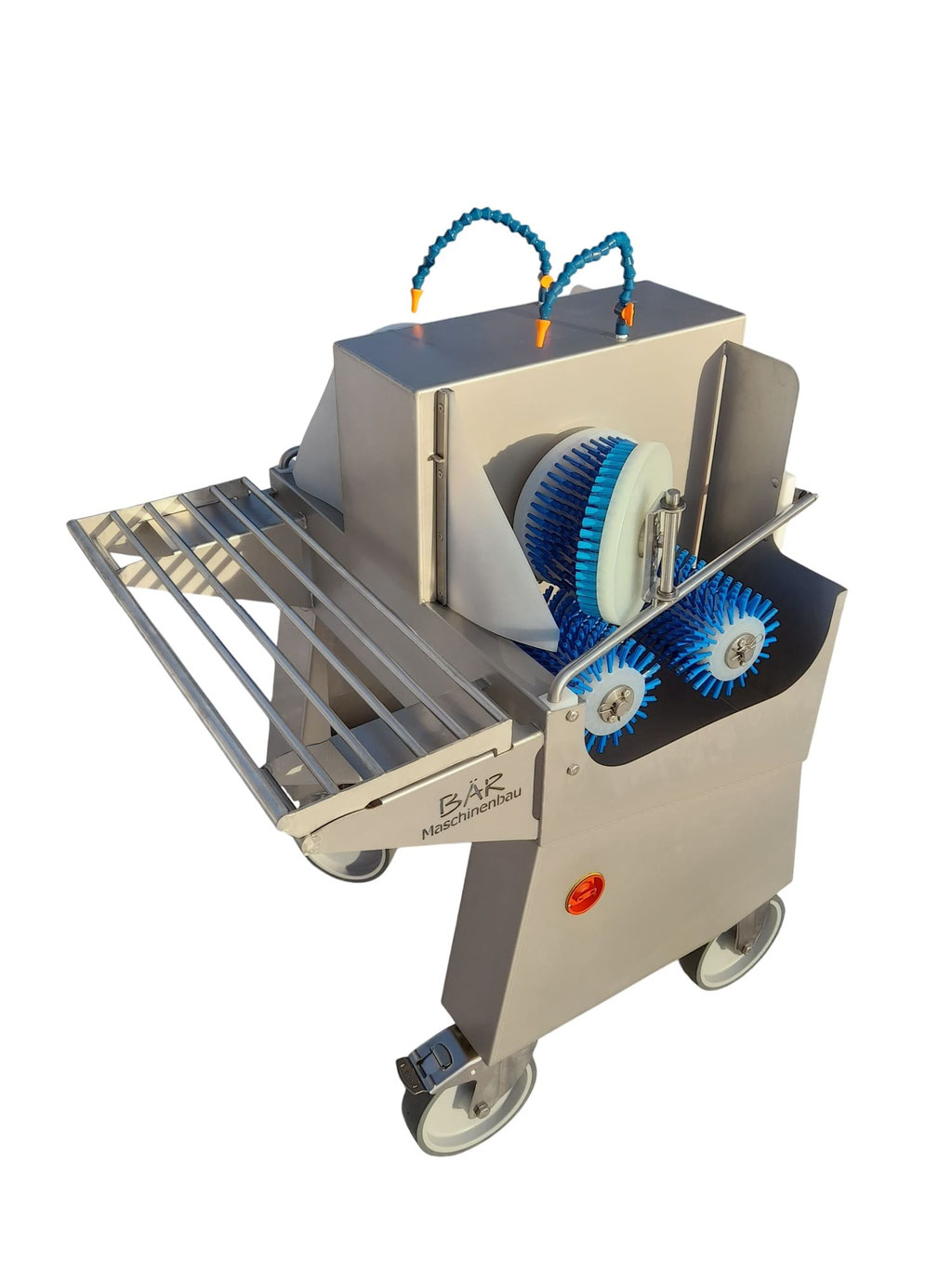

Overall design:

The cheese lubricating machine was developed for hard and semi-hard cheese wheels and is suitable for cheese wheels up to Ø350mm. The machine has two vertical lubrication stations, which allows excess lubricating water to drain away easily. The machine is characterized by its easy operation, ergonomic working height, good maneuverability and very high hourly output. The two lubrication stations enable the operator to quickly change the cheeses in a time-saving manner.

Compared to manually caring for cheese, the work can be carried out much faster and with less physical strain. The machine brushes the wheels evenly and enables the formation of a homogeneous cheese rind. Thanks to the high pump performance with an adjustable amount of lubricating water, the machine is also perfect for washing cheese wheels.

An additional lubricating water line is optionally available to also moisten the external brushes.

The high-quality machine housing made of V4A stainless steel is hygienically designed and easy to clean.

The care stations are easily accessible, all cleaning-relevant parts such as brushes, etc. can be removed without tools for easy cleaning. The lubricating water lines are hygienic and flushable.

The compact chassis is located on four large-diameter wheels, which means the machine can easily be pushed over thresholds.

Video:

Care process:

Individual feeding of the cheeses with storage grid:

The cheese loaves are fed to the machine individually and can be placed on the storage grid on the machine. The operator conveys the cheese loaves to the care stations and, after the desired lubrication time, can remove the finished cared-for cheeses from the care stations and return them to the cheese shelf.

Cheese feed with cheese board (without shelf grid):

For this, the plug-in storage grid on the machine is not required and is removed. The complete cheese board with 2 or 3 cheese wheels can be placed on the freed-up shelf. When all the loaves of the cheese board are finished, it is lifted back into the cheese rack.

Cheese dimensions for cheese care machine Ø35

Technical data:

for cheese diameters from 200mm to 350mm
for cheese heights from 60mm to 160mm
hermetically decoupled salt water pump, lubricating water quantity adjustable
Electrical connection 380V, 50Hz, 16A CEE plug including supply cable, incl. 6 metre cable length or longer if required
produced according to European hygiene and safety guidelines
